AC-90® - Interlocked Galvanized Steel Armor - Type AC
AC-90® Cables from Atkore, sometimes referred to as BX cable, are a commercial wiring method favored by installers for their flexible interlocked steel armor, which provides mechanical protection. These versatile 600V cables with THHN conductors have certain construction limitations due to the inception and design of UL Standard 4 over 100 years ago. The UL Standard allows for 2, 3, or 4 conductors, individually wrapped with moisture-resistant, fire-retardant paper and twisted from 14 AWG to 1 AWG. Type AC Cable is the foundation of all interlocked armored cable assemblies we have today.
Features
- Cable System. Technically equivalent and economically superior to traditional raceway and wire installations.

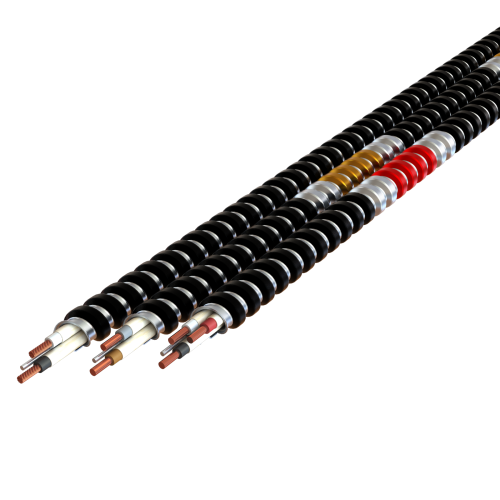

- ColorSpec® ID/Color-Trak ID System. Black galvanized steel armor with phase ID painted directly onto the armor for added identification without the added step of opening the panel to determine circuit type.
- Grounding. Armor in conjunction with the 16AWG aluminum ground/bonding conductor serves as equipment ground fault path.
- Made in USA of US and/or imported materials
Standards
UL Listed
Specifications
